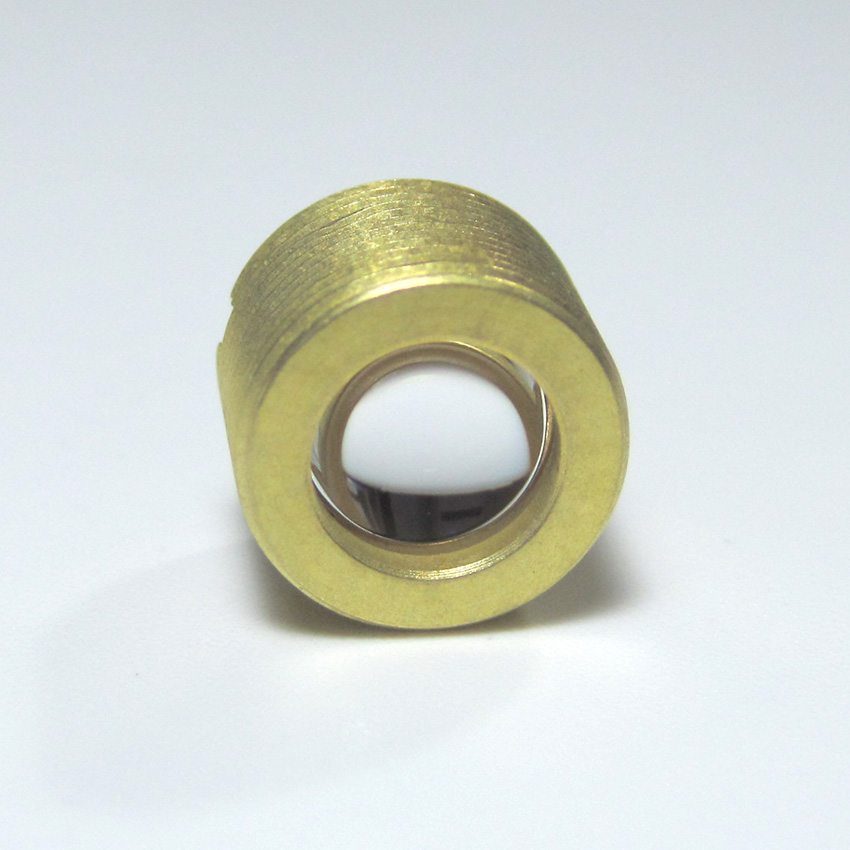

Focal length 6.2mm numerical aperture 0.3 optical glass aspheric collimating lens

Model: M90508F4762
Type: Aspheric Collimating Lens
Size: M9 * P0.5-8mm
Focal length: 6.2mm
Clear aperture: 3.7mm
Numerical aperture: 0.3
Diode to the lens distance: 4.1mm
Wavelength: 400-700nm
Center thickness: 3.8mm
OD: φ4.7mm
Edge thickness: 8mm

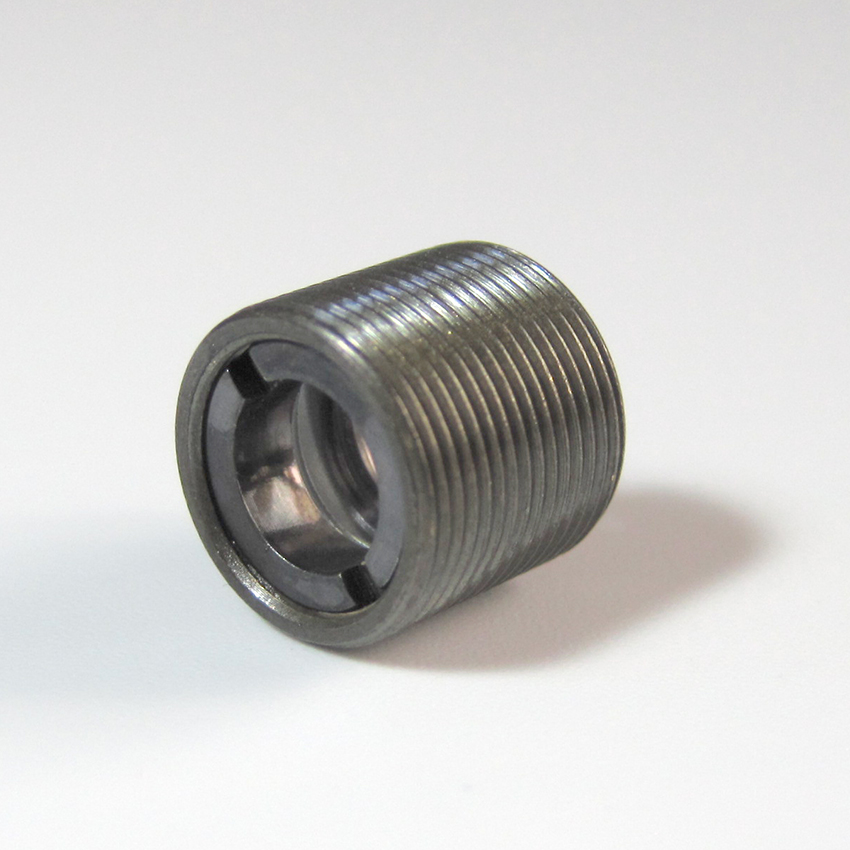

3.77mm focal length aspheric laser collimation lens with a numerical aperture of 0.33

Model: M90508F03308
Type: Aspheric Laser Collimating Lens
Size: M9 * P0.5-8mm
Focal length: 3.77mm
Clear aperture: 2.4mm
Numerical Aperture: 0.33
Diode to lens distance: 2.9mm
Transmittance:> 97%
Coating: 630nm-680nm
Wavelength: 655nm
Outer diameter: 3.0mm
Material: L-BAL35

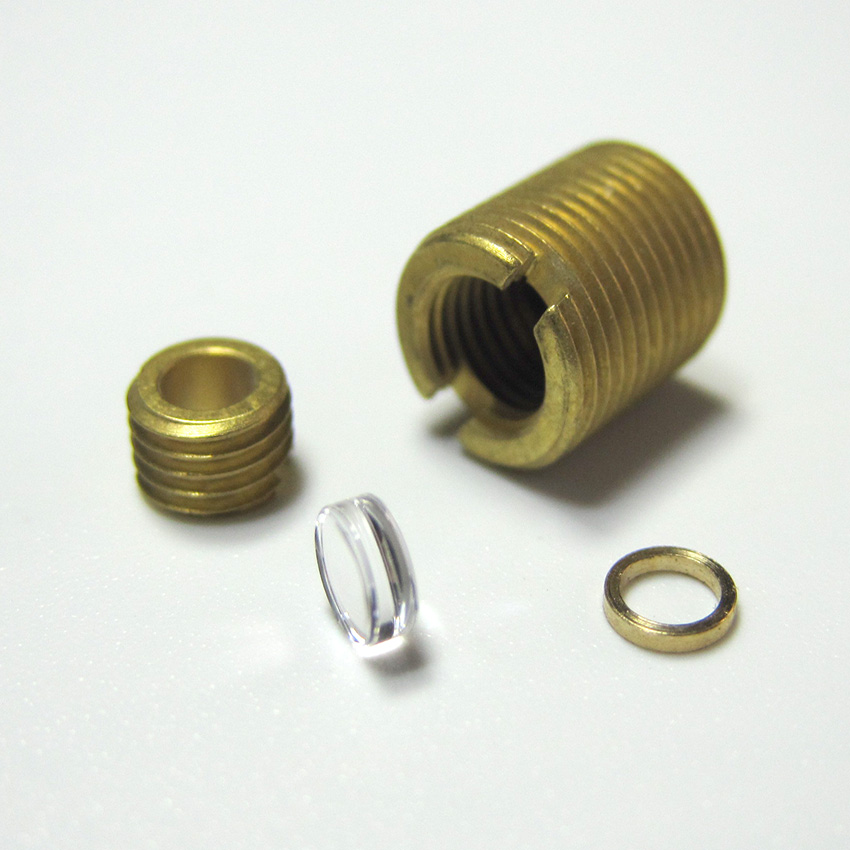

Optical glass aspheric collimating lens with focal length of 10mm and numerical aperture of 0.17

Model: M90508F635107
Type: Aspheric Collimating Lens
Size: M9 * P0.5-8
Focal length: 10mm
Clear aperture: 3.5mm 3.0mm
Numerical Aperture: 0.17
Diode to lens distance: 8.3mm
Transmittance:> 97%
Wavelength: 780 ± 20nm
OD: 6.35mm
Material: L-BAL42

Focal length of 8mm aperture of 3.7mm optical glass aspheric collimating lens

Model: M90508F4780
Type: Aspheric Collimating Lens
Size: M9 * P0.5
Focal length: 8.0mm
Clear aperture: 3.7mm
Numerical Aperture: 0.28
Diode to lens distance: 5.86mm
Coating: 400-700nm
Center thickness: 2.9mm
OD: φ4.7mm
Edge thickness: 8mm

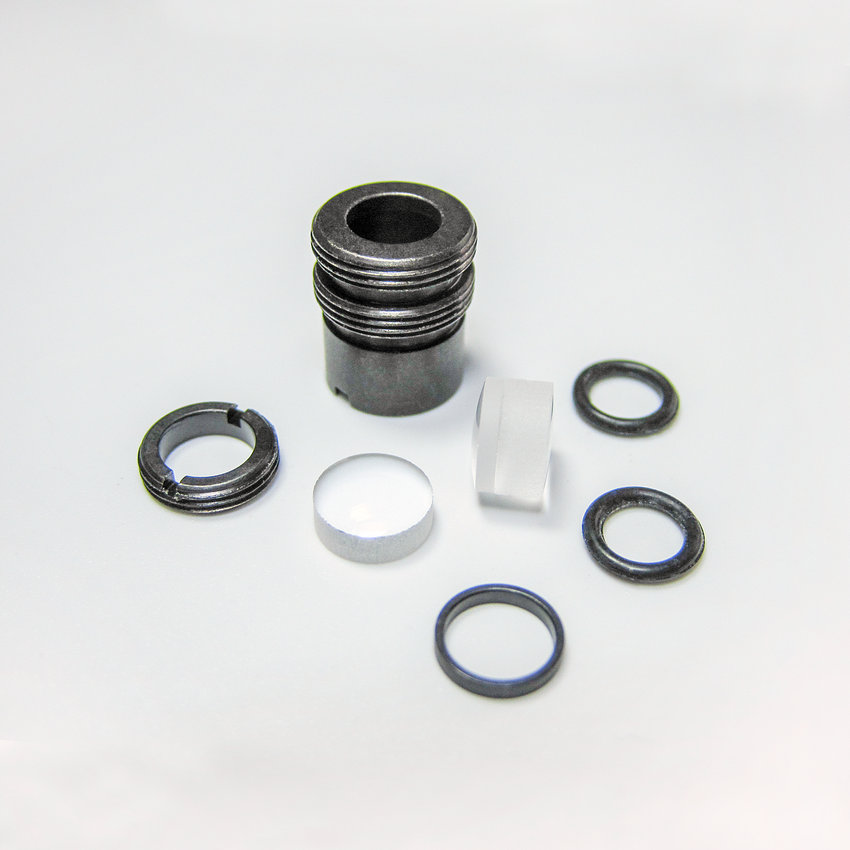

9.3mm focal length optical glass spherical collimating lens 5mm diameter

Model: M9051063
Type: Spherical Collimating Lens (Black Three-Piece)
Size: M9 * P0.5-10mm
Focal length: 9.3 ± 0.08mm
Clear aperture: 5.0mm
Numerical aperture: 0.3
Diode to lens distance: 6.8mm
Alignment: ≥ ± 0.74mrad
Transmittance: ≥95%
Coating: 405nm-450nm

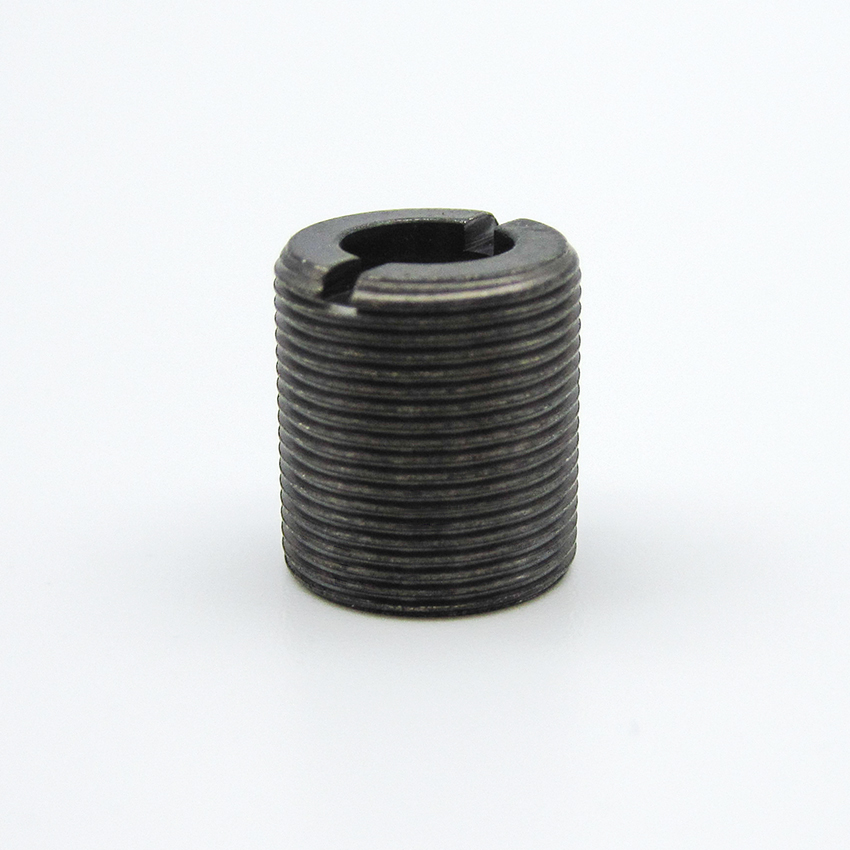

Optical glass collimation lens with a focal length of 6.5 mm and a numerical aperture of 0.45

Model: M90510543-S
Type: spherical collimation (black three-piece)
Size: M9 * P0.5-10.5mm
Focal length: 9.3 ± 0.08mm
Clear aperture: 5.0mm
Numerical aperture: 0.3
Diode to lens distance: 6.8mm
Alignment: ≥ ± 0.74mrad
Transmittance: ≥95%
Coating: 405nm-450nm

9.3mm focal length optical glass spherical collimating lens with a numerical aperture of 0.3

Model: M90510543-S
Type: spherical collimation (black three-piece)
Size: M9 * P0.5-10.5mm
Focal length: 9.3 ± 0.08mm
Clear aperture: 5.0mm
Numerical aperture: 0.3
Diode to lens distance: 6.8mm
Alignment: ≥ ± 0.74mrad
Transmittance: ≥95%
Coating: 405nm-450nm

Focal length of 9.3mm optical glass spherical collimating lens

Model: M90510543-D
Type: spherical collimation (black three-piece)
Size: M9 * P0.5-10.5mm
Focal length: 9.3 ± 0.08mm
Clear aperture: 5.0mm
Numerical aperture: 0.3
Diode to lens distance: 6.8mm
Alignment: ≥ ± 0.74mrad
Transmittance: ≥95%
Coating: 405nm-450nm

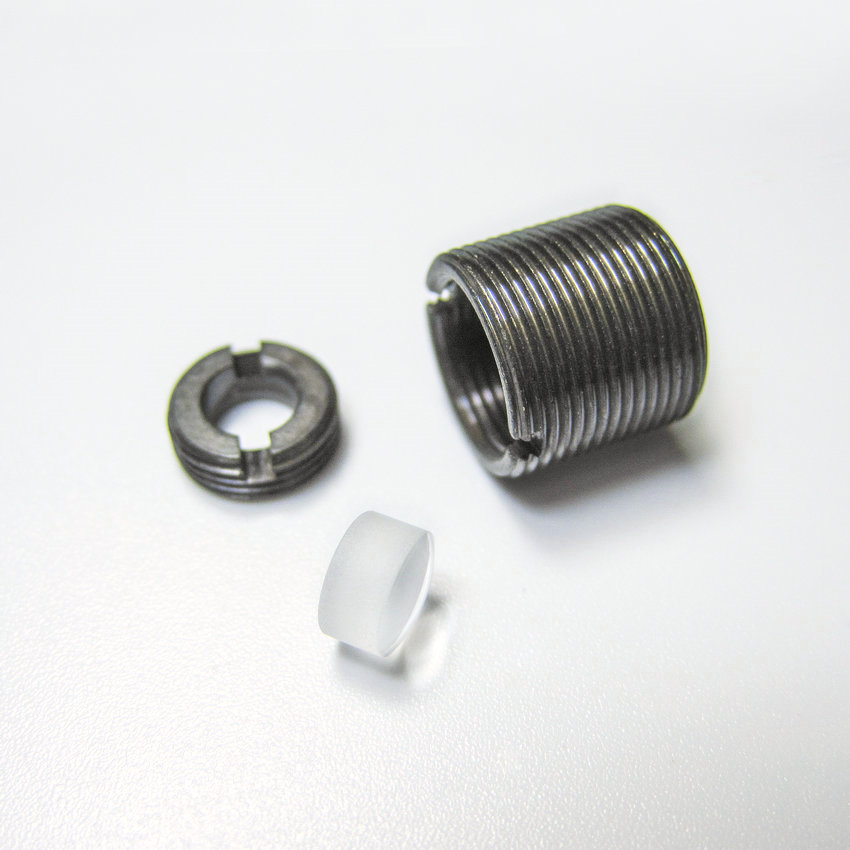

Optical glass aspherical collimating lens with 6mm focal length

Model: M605605F0306
Type: Aspheric Collimating Lens
Size: M6.5 * P0.5-6mm
Focal length: 6.0mm
Clear aperture: φ2.7mm φ2.2mm
Numerical Aperture: 0.22
Diode to lens distance: 5.20mm
Wavelength: 635nm
Center thickness: 1.5mm
Outer diameter: 3mm

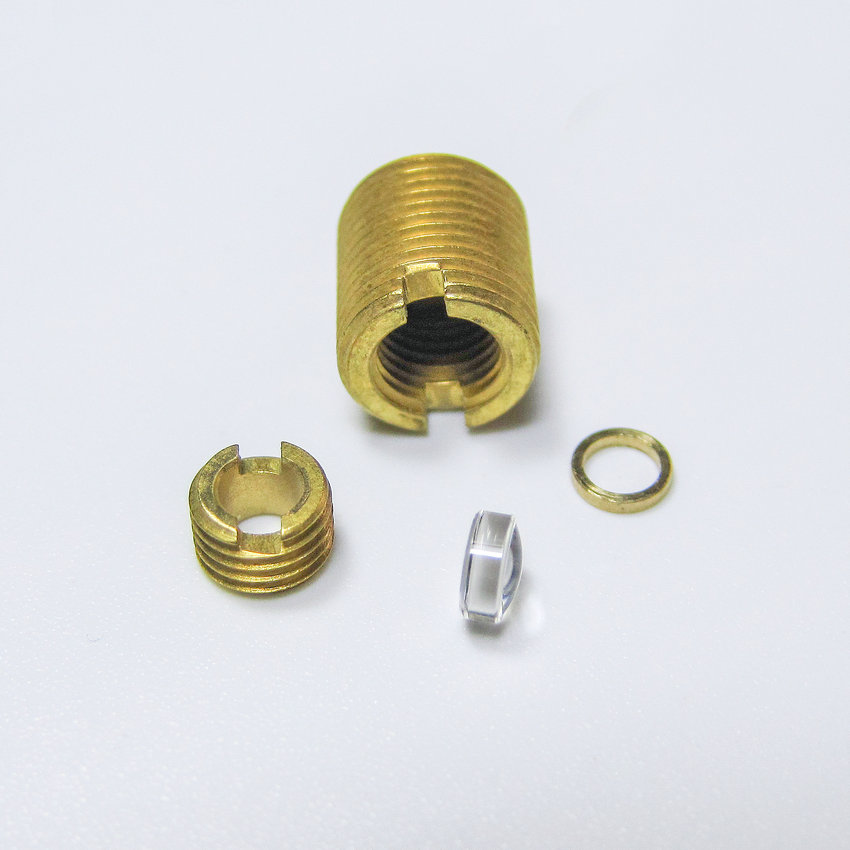

4.02mm focal length optical glass aspheric collimating lens

Model: M905605F633402
Type: Aspheric Collimating Lens (Yellow Monolithic)
Size: M9 * P0.5-6.5mm
Focal length: 4.02mm
Clear aperture: 5.1mm
Numerical aperture: 0.6
Diode to lens distance: 2.357mm
Coating: 400-700nm, 700-1100nm
Lens diameter: 6.33mm
Edge thickness: 8mm
